Amlogic S905X

Brief introduction

Amlogic S905X Quad Core Coretex-A53 Up to 2.0GHz(DVFS)

Penta-Core Mali-450 Up to 750MHz+(DVFS)

DDR3 1GB + Nand Flash 8GB

Android 6.0 Marshmallow OS

802.11a/b/g/n 2.4GHz WiFi Bluetooth 4.0

4K*2K@60fps Max Resolution

Latest Kodi Pre-installed

Detailed parameters

CPU Amlogic S905X Quad Core Coretex-A53 Up to 2.0GHz(DVFS)
GPU Penta-Core Mali-450 Up to 750MHz+(DVFS)
Memory DDRIII 1GB (Optional 1GB,2GB)
Nand Flash 8GB  (Optional 4GB,8GB,16GB,32GB )
WiFi  802.11a/b/g/n,2.4GHz   (Pretty strong wifi signal,optional 5G WiFi)
Bluetooth Bluetooth 4.0

Front Panel

IR Remote control
Red LED Standby; Green LED Run

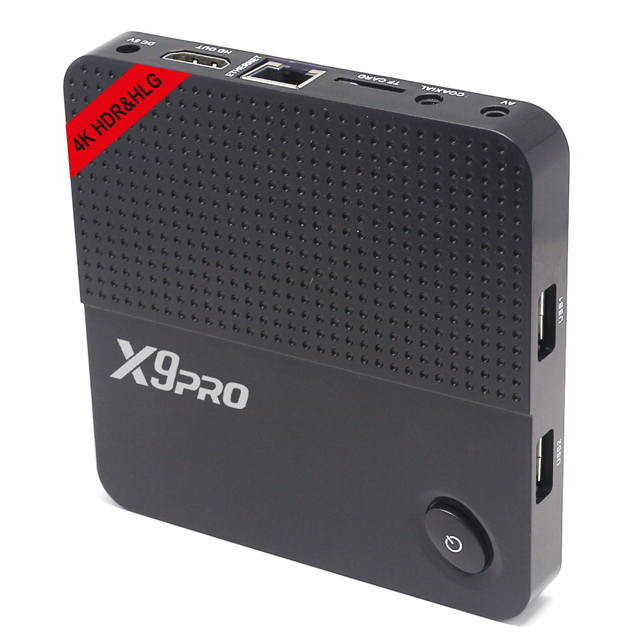

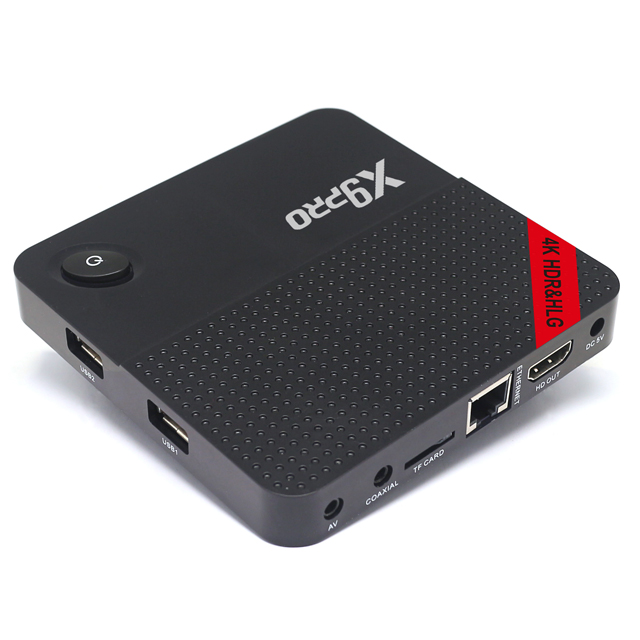

Rare Panel

2*USB 2.0 Embedded Host
1* 4K*2K UHD Output,2.0A
1*Ethernet 10/100M ,Standard RJ-45
1*Micro-SD Card Slot
1*Coaxial Digital Audio Output
1*Power input 5V/2A
Operating System Android 6.0 Marshmallow


-VP9 Profile-2 up to 4K*2K@60fps
-H.265 HEVC MP-10@L5.1 up to 4K*2K@60fps
-H.264 AVC HP@L5.1 up to 4K*2K@30fps
-H.264 MVC up to 1080P@60fps
-MPEG-4 ASP@L5 up to 1080P@60fps(ISO-14496)
-WMV/VC-1 SP/MP/AP up to 1080P@60fps
-AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
-MPEG2 MP/HL up to 1080P@60fps
-MPEG1 MP/HL up to 1080P@60fps
-RealVideo 8/9/10 up to 1080P@60fps
* Low latency 1080P H.264 60fps encoder
* HDR10 and HLG HDR Video Processing
* Supports *.mkv,*.mpg,*.wmv,*.mpeg,*.dat,*.avi,*.mov,*.iso,*.mp4,*.rm and *.jpg file formats
* Video/Picture Encoding
-Independent JPEG and H.264 encoder with configurable performance/bit-rate
-JPEG image encoding
-H.264 video encoding up to 1080P@60fps with low latency

Audio Decoding

Low power MediaCPU with DSP audio processing
Supports MP3,AAC,WMA,RM,FLAC,Ogg and programmable with 7.1/5.1 down-mixing
Built-in stereo audio DAC
Built-in SPDIF/IEC958 and PCM serial digital audio input/output
Supports concurrent dual audio stereo channel output with combination of analog+PCMo or I2S+PCM
Language English,French,German,Spanish,Italian etc multilateral languages
KODI Latest Kodi Pre-installed(keep updating)
Remote Support IR Remote control
Online Browse all video websites,support Netflix ,YouTube,Showbox,Mobdro, etc
Apps Apps download freely from Google Play Store,Aptoide,etc
Media Local Media playback,support HDD,Flash Driver,Micro-SD card
Talk online Support Skype,Facebook,Twitter, QQ etc


Support WiFi Hotspot,can be used as a wireless router.
Support DLNA, Air Play, Google TV Remote,etc

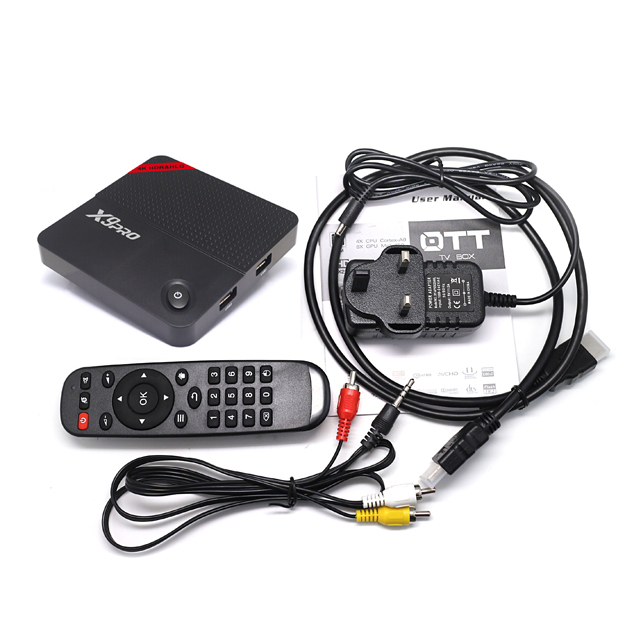

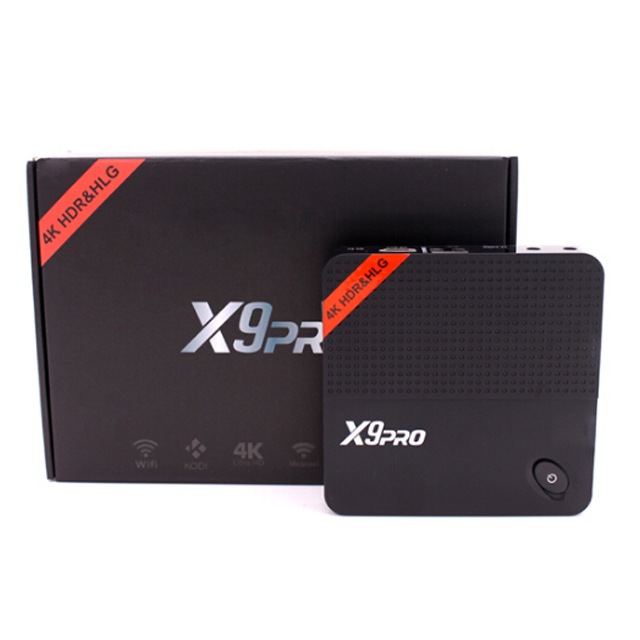

1*Gift box packing
1*AV cable
1*IR remote control
1*Power charger adapter
1*User manual
