Amlogic S912

Brief introduction

Amlogic S912 Octa core Cortex-A53 CPU up to 2GHz (DVFS)

Mali-T820MP3 GPU up to 750MHz (DVFS)

DDR3 2GB+Nand Flash 18GB

Android 6.0 Marshmallow OS

5GHz WiFi  Bluetooth 4.0

1000M LAN

4K*2K@60fps Max Resolution

Latest Kodi Pre-installed

Detailed parameters

Hardware

CPU

Amlogic S912 Octa core Cortex-A53 CPU up to 2GHz (DVFS)

GPU

Mali-T820MP3 GPU up to 750MHz (DVFS)

Memory

DDRIII 2GB

Nand Flash

16GB

WiFi

802.11a/b/g/n  2.4GHz/5GHz(Optional)

Bluetooth

Bluetooth 4.0

Front Panel

IR Remote control

Red LED Standby; Green LED Run

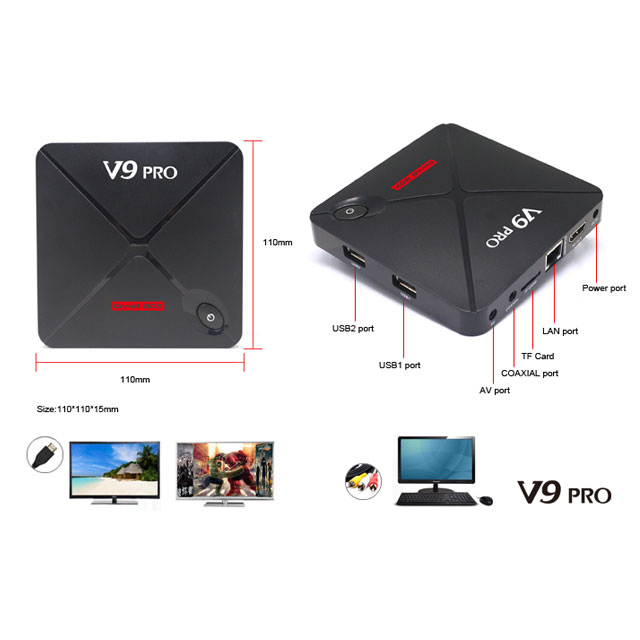

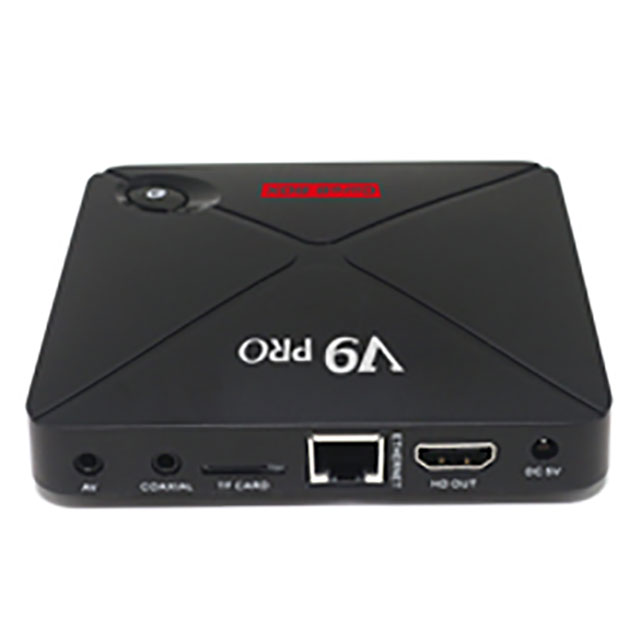

Rare Panel

2*USB 2.0 Embedded Host

1*HDMI 4K*2K UHD Output,HDMI 2.0A

1*Ethernet 10/100M ,Standard RJ-45 (Optional 1000M)

1*RCA CVBS AL AR( (480i/576i standard definition output)

1*Micro-SD Card Slot

1*Coaxial Digital Audio Output

1*Power input 5V/2A

Software

Operating System

Android 6.0 Marshmallow

Video/Picture
Decoding

-VP9 Profile-2 up to 4K*2K@60fps
-H.265 HEVC MP-10@L5.1 up to 4K*2K@60fps
-H.264 AVC HP@L5.1 up to 4K*2K@30fps
-H.264 MVC up to 1080P@60fps
-MPEG-4 ASP@L5 up to 1080P@60fps(ISO-14496)
-WMV/VC-1 SP/MP/AP up to 1080P@60fps
-AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
-MPEG2 MP/HL up to 1080P@60fps
-MPEG1 MP/HL up to 1080P@60fps
-RealVideo 8/9/10 up to 1080P@60fps
* Low latency 1080P H.264 60fps encoder
* HDR10 and HLG HDR Video Processing
* Supports *.mkv,*.mpg,*.wmv,*.mpeg,*.dat,*.avi,*.mov,*.iso,*.mp4,*.rm and *.jpg file formats
* Video/Picture Encoding
-Independent JPEG and H.264 encoder with configurable performance/bit-rate
-JPEG image encoding
-H.264 video encoding up to 1080P@60fps with low latency

Audio Decoding

Low power MediaCPU with DSP audio processing
Supports MP3,AAC,WMA,RM,FLAC,Ogg and programmable with 7.1/5.1 down-mixing
Built-in stereo audio DAC
Built-in SPDIF/IEC958 and PCM serial digital audio input/output
Supports concurrent dual audio stereo channel output with combination of analog+PCMo or I2S+PCM

Language

English,French,German,Spanish,Italian etc multilateral languages

KODI

Latest Kodi Pre-installed(keep updating)

Remote

Support IR Remote control

Applications

Online

Browse all video websites,support Netflix ,YouTube,Showbox,Mobdro, etc

Apps

Apps download freely from Google Play Store,Aptoide,etc

Media

Local Media playback,support HDD,Flash Driver,Micro-SD card

Talk online

Support Skype,Facebook,Twitter, QQ etc

Others

Support WiFi Hotspot,can be used as a wireless router.

Support DLNA, Air Play, Google TV Remote,etc

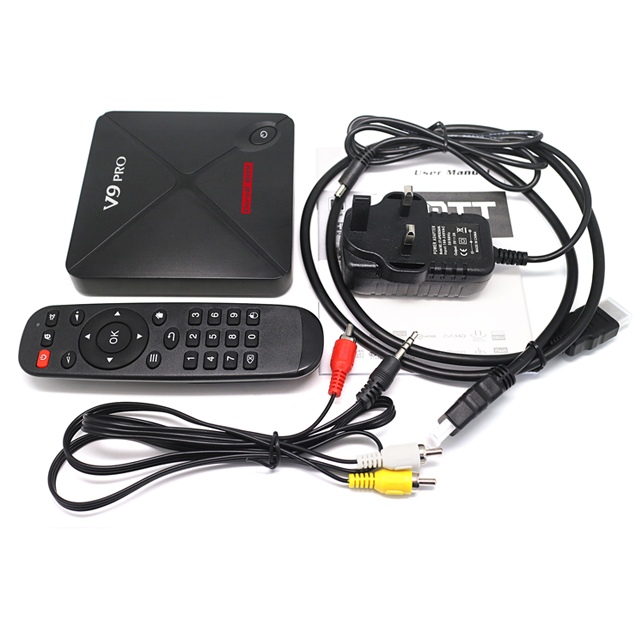

Accessories

1*Gift box packing
1*AV cable
1*HDMI cable
1*IR remote control
1*Power charger adapter
1*User manual
